PK120/42 Hydraulic Crimping Head 10-400mm<sup

Features & Benefits

Crimping Range from 16-400mm²
G style head with larger 42mm jaw opening
Uses 13 series interchangeable crimping dies
Up to 60% fewer crimps thanks to wider crimping dies
User friendly rotatable head 360degree when NOT pressurised
Light weight due to high quality aluminium housing
Simple and safe automatic retraction when operating is complete
Crimping force 120kN
Weight of tool – 4.5kg

Hydraulic crimping heads - pump mounted

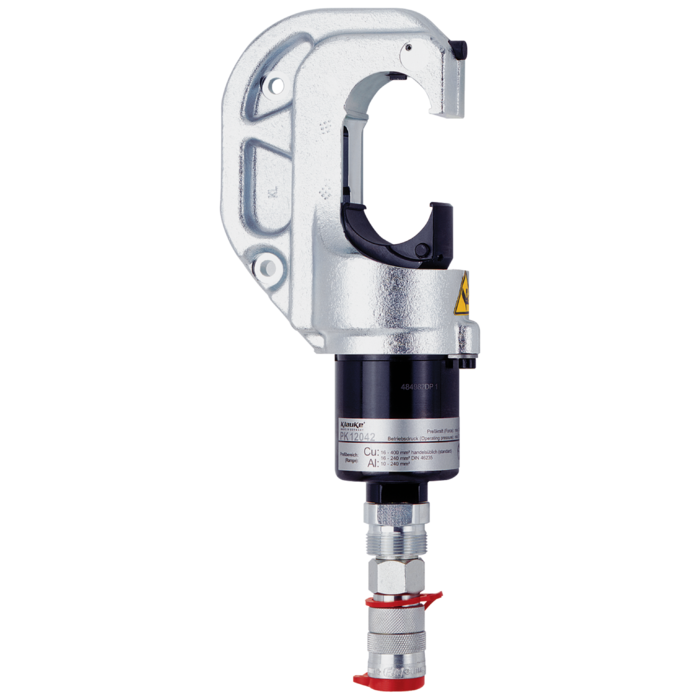

PK120/42 Hydraulic Crimping Head 10-400mm

Klauke hydraulic G style crimping head suitable for crimping lugs and connectors from 10-400mm². Crimping Head comes complete with a quick release coupler which enables connection onto foot pump/electric pump or battery pump. All tools supplied with a 12 month manufactures warranty and calibration certificate.

Part No	Size Range O/D
PK120/42	16-400mm2
