PK25/2 Hydraulic Crimping Head 16-630mm<sup

Features & Benefits

Crimping Range from 16-630mm²
H style head
Uses 25 series interchangeable crimping dies
User friendly rotatable head 360° when NOT pressurised
Light weight due to high quality aluminium housing
Simple and safe automatic retraction when operating is complete
Crimping force 250kN
Weight of tool – 5.3kgs
Tool complete with carry bag
Max operating pressure 700 Bar

Hydraulic crimping heads - pump mounted

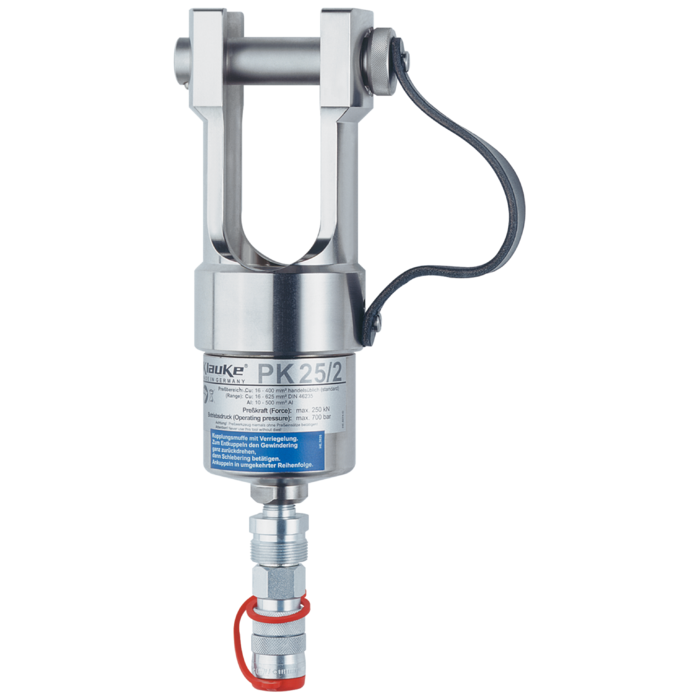

PK25/2 Hydraulic Crimping Head 16-630mm

Klauke hydraulic H style crimping head suitable for crimping lugs and connectors from 16-630mm². Crimping Head comes complete with a quick release coupler which enables connection onto foot pump/electric pump or battery pump. All tools supplied with a 12 month manufactures warranty and calibration certificate.

Part No	Size Range O/D
PK25/2	16-630mm2
